# Product Details - Portal Frame Steel Workshop

## 1. Product Overview

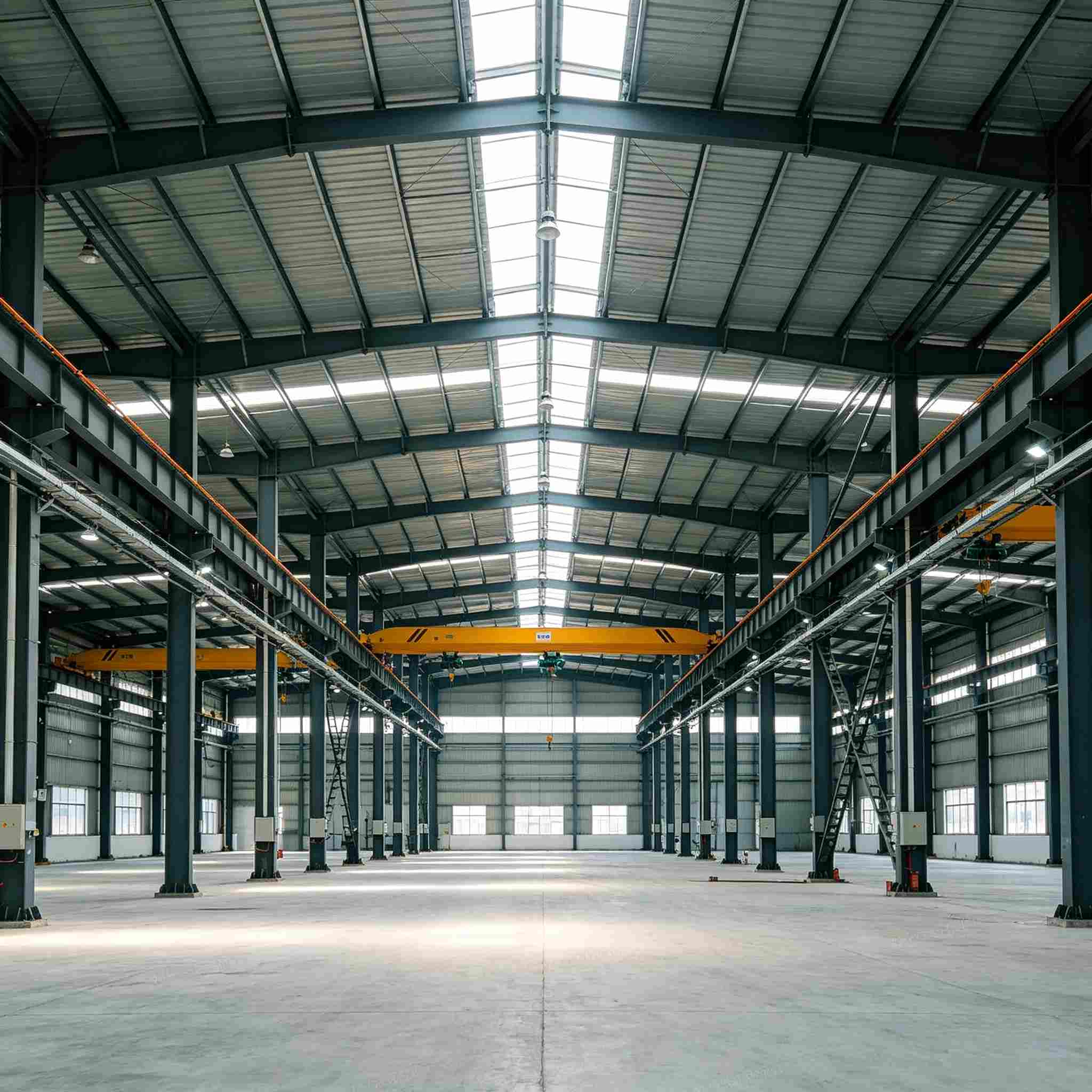

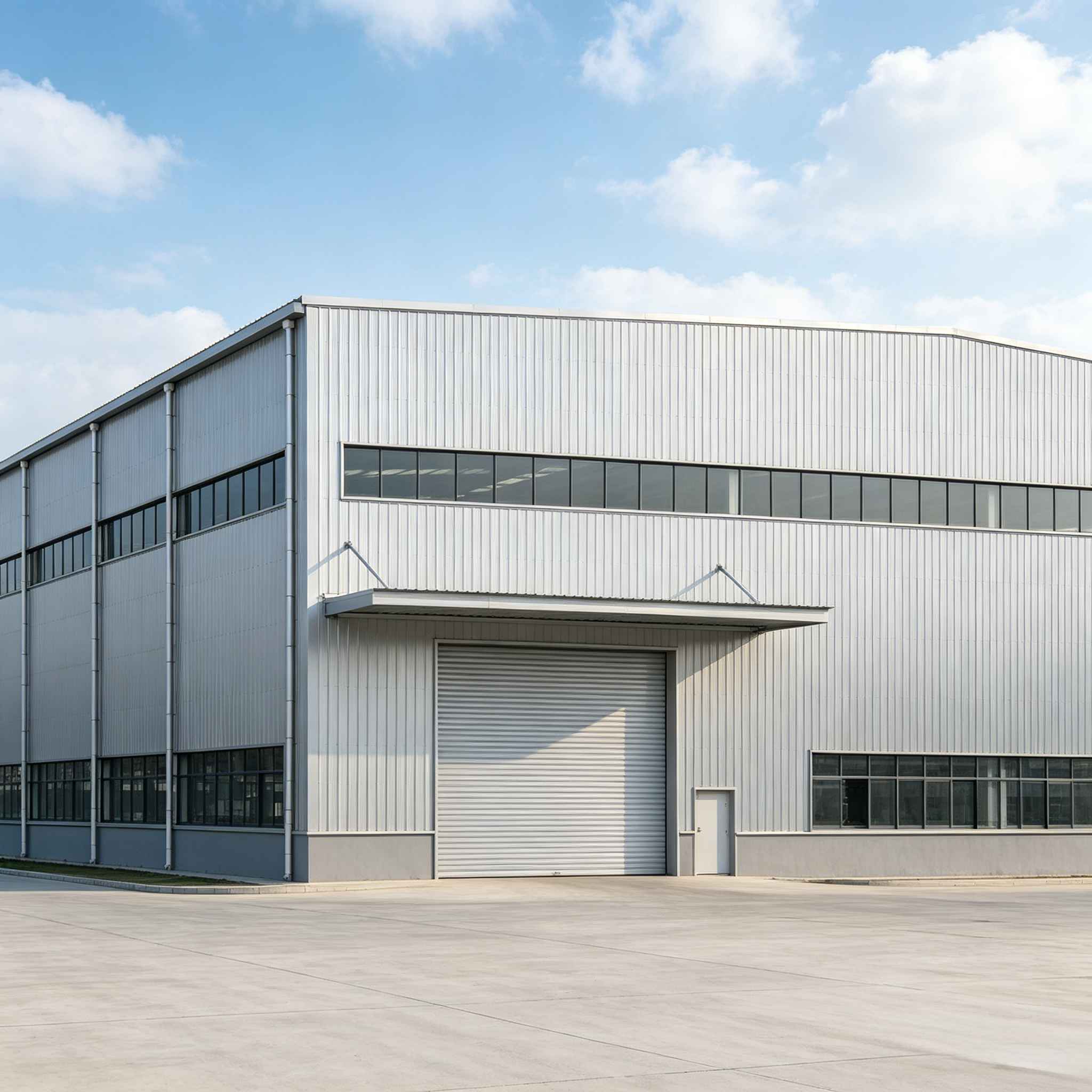

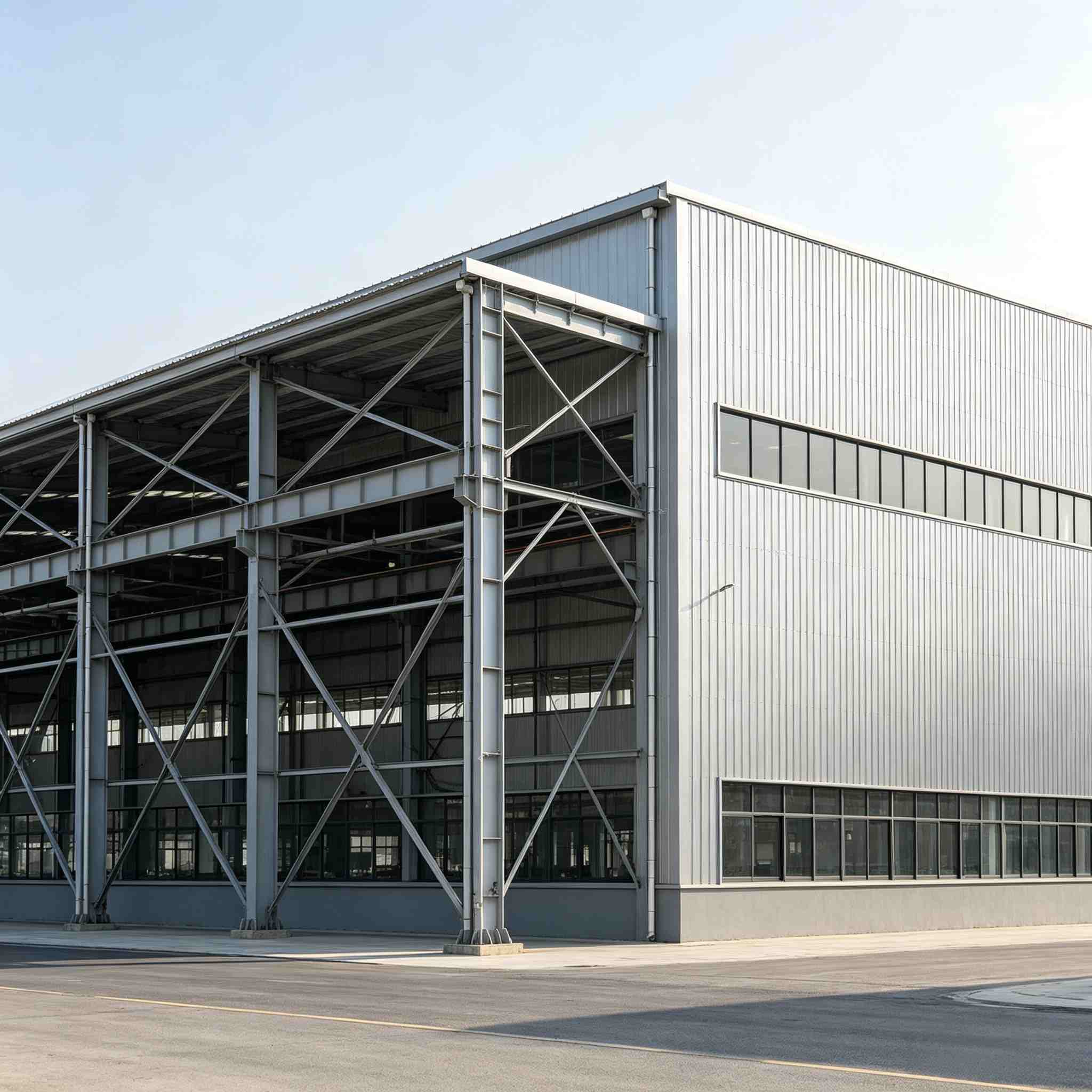

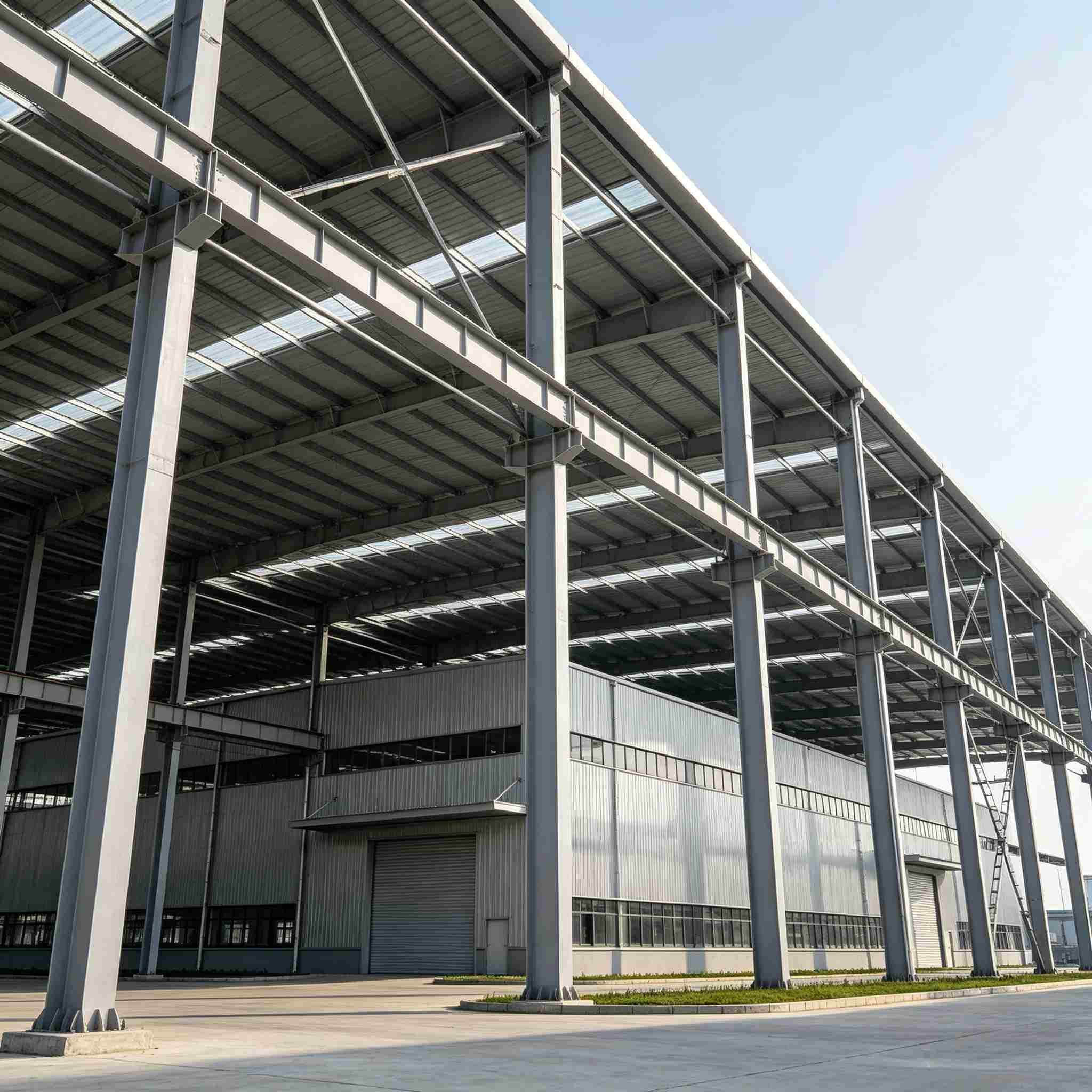

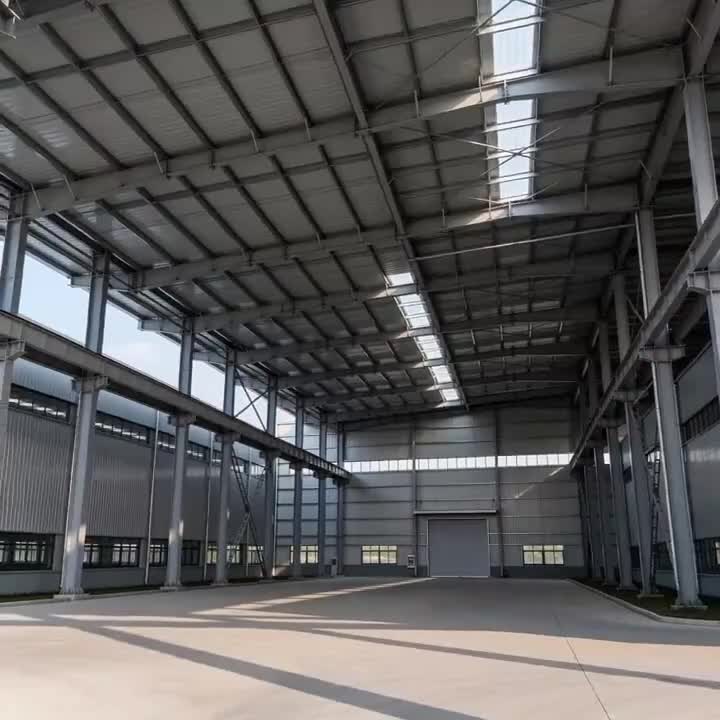

Portal frame steel workshop is a mainstream prefabricated light steel industrial building, taking hot-dip galvanized H-beam as the main load-bearing frame. It removes middle columns to realize ultra-wide clear span space, with fast on-site assembly, low overall construction cost and long service life. Widely used in machinery processing workshops, manufacturing plants, storage warehouses, auto repair shops and other industrial scenarios. All steel components are pre-processed in factory, only assembly work needed on site, greatly shortening construction cycle.

## 2. Main Structure Configuration

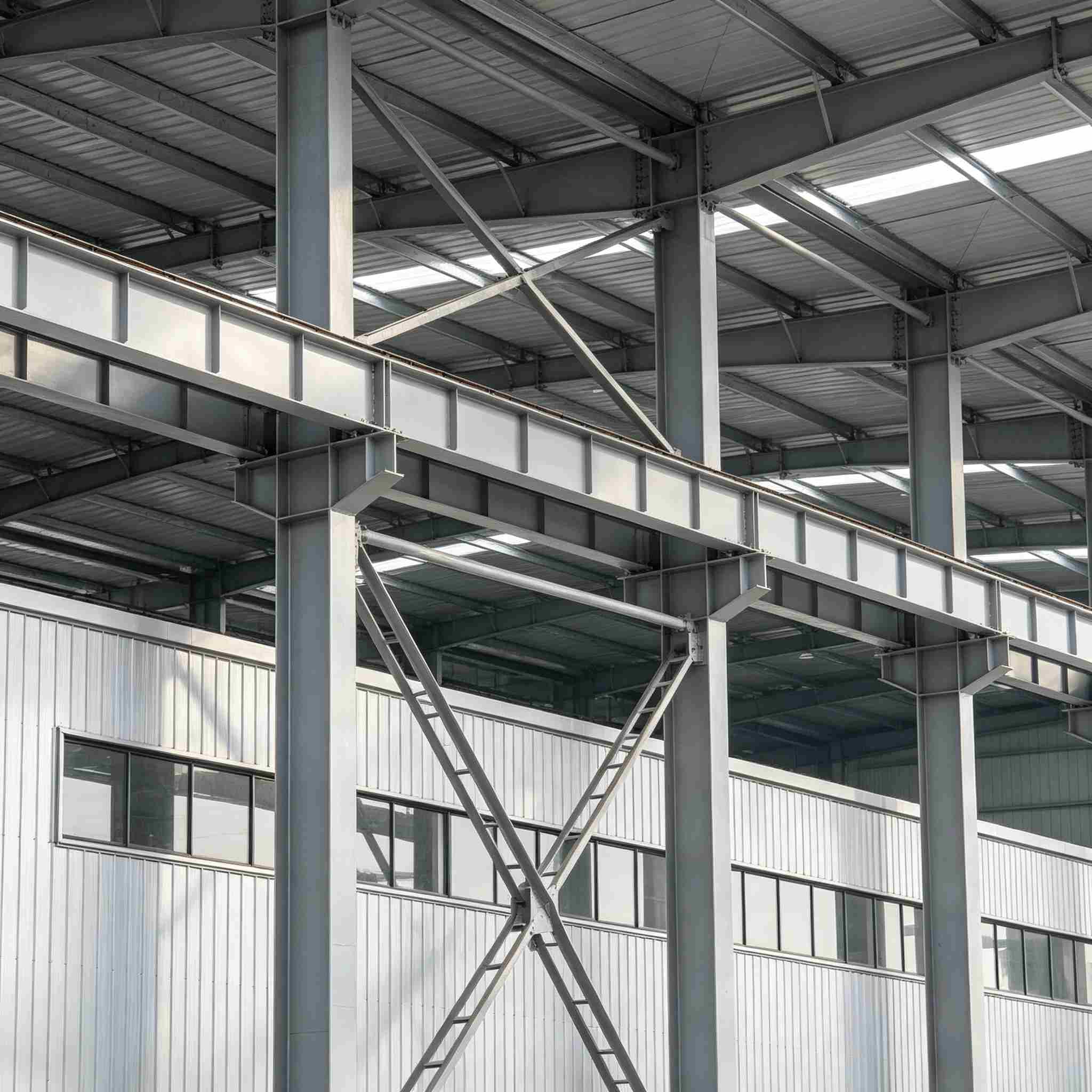

1. Main Frame: Welded H section steel portal frame, Q235B / Q355B steel optional

2. Secondary Purlin: C-shaped steel purlin, galvanized anti-rust treatment

3. Wall & Roof Panel: Color steel sandwich panel / single color steel tile, fireproof & heat insulated

4. Connecting Parts: High-strength galvanized bolts, anti-corrosion fasteners

5. Foundation: Independent concrete foundation, customized according to local wind and snow load

## 3. Core Advantages

- Large clear span: No intermediate columns, maximize internal usable space

- Quick installation: Factory prefabrication, short construction period, save labor cost

- Strong durability: Hot-dip galvanized steel, excellent anti-rust & anti-corrosion performance

- Flexible customization: Adjustable span, height, bay distance, load, door and window layout

- Energy saving: Optional thermal insulation panels, good heat preservation and heat insulation effect

- Low maintenance: Simple structure, convenient later inspection and maintenance

## 4. Technical Parameter Support

We can customize workshop size according to customer demands, including span, eaves height, roof slope, crane load, wind resistance grade, snow resistance grade, fire protection grade. All steel materials meet international standard specifications, complete factory inspection reports provided.

## 5. Application Scenarios

Machinery processing workshop, hardware production factory, logistics storage warehouse, automobile assembly workshop, agricultural breeding workshop, light industrial production plant, goods distribution center.

## 6. Service Support

Provide one-stop service including design drawing, steel component production, packaging transportation, installation guidance and after-sales maintenance. Support personalized size, color and functional system customization to meet different industrial production demands.
